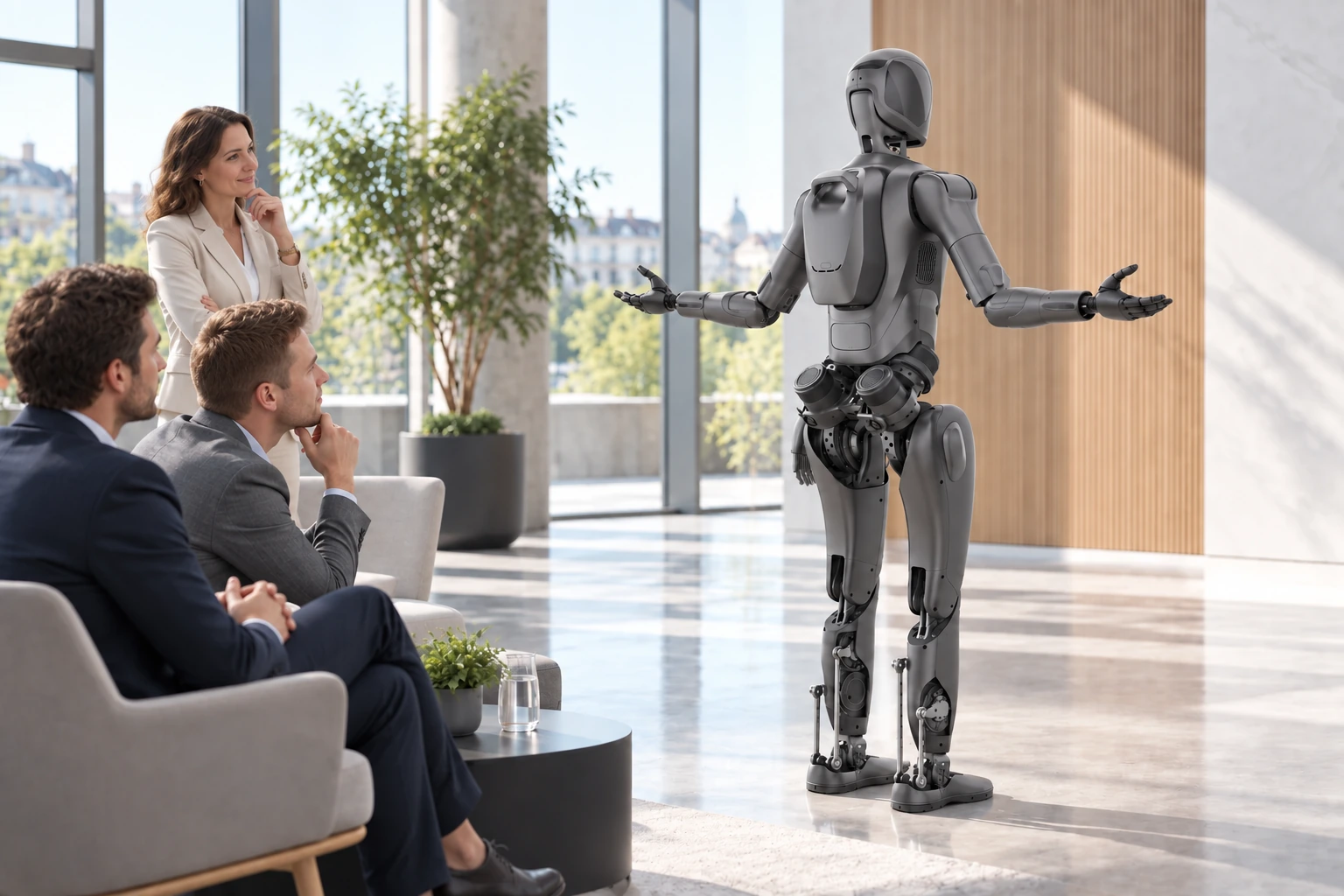

A full-size humanoid, 169 cm tall.
A2 robots can make a striking appearance at corporate demonstrations and events. Lite is primarily designed for movement demonstrations, while Ultra supports interactive applications with a broader sensor suite.
A series
AGIBOT A2 Lite
1 / 7
The software and equipment required for these applications are specified in the quotation.
A full-size humanoid designed for choreographed performances and coordinated robot shows.
Net price + 27% VAT44,560 USD
The price is indicative.
Availability and configuration are agreed individually.
169 cmheight
≈ 64 kgmanufacturer-stated weight
23active degrees of freedom (DoF)
14.4 Ahbattery
A closer look at AGIBOT A2 Lite.
Choreography with one robot or a group.
A2 Lite movement sequences and the manufacturer’s group-control tools can support coordinated performances. We confirm compatibility with optional VR equipment and software packages in advance.
Plan the power supply.
The 14.4 Ah battery can be charged and replaced. Plan stationary interaction and walking separately when estimating operating time, as their energy requirements differ significantly.
The hardware, explained.
Front view
Speaker
Built-in speaker for performance audio.
Three-axis shoulder
Shoulder joints provide pitch, roll and yaw.
Elbow joint
Elbow flexion and extension complete the arm motion.
Wrist rotation
Together with the wrist roll axis, each arm has five DoF.
Soft hand
A soft hand for choreographed gestures and movements.
Rear view
Head rotation
A neck rotation joint turns the head.
Suspension point
The upper attachment point provided by the manufacturer supports handling of the robot.
Battery pack
An accessible, replaceable rear battery unit.
Maintenance bay
A service compartment in the lower back.
Hip joints
Three hip axes control the orientation of each leg.
Knee joint
Knee flexion and extension for stepping and performance movements.
Two-axis ankle
Ankle pitch and roll complete six DoF in each leg.
Equipment overview
Movement and mechanics
- Active degrees of freedom
- 23
- Neck degrees of freedom
- 1
Sensing and control
- 3D LiDAR
- Not listed
- RGB-D camera
- Not listed
- RGB camera
- Not listed
Power and operation
- Battery capacity
- 14.4 Ah
- Power supply
- Fast charging and replaceable battery
- Charging time
- approx. 2 hours
COMPLETE DATA SHEET
Technical specifications.
Manufacturer specifications and measurement conditions, organised by topic.
Source: AGIBOT ↗
Dimensions and degrees of freedom (DoF)
- Dimensions (H × W × D)
- 169 × 75 × 30 cm
- Height
- 169 cm
- Weight
- approx. 64 kg
- Active degrees of freedom
- 23
- Neck degrees of freedom
- 1
- Degrees of freedom per arm
- 5
View full technical specificationsShow less
- Degrees of freedom per leg
- 6
- Degrees of freedom per hand
- Robot hand not listed
Sensing and interaction
- 3D LiDAR
- Not listed
- RGB-D camera
- Not listed
- RGB camera
- Not listed
- Fisheye camera
- Not listed
- Interactive display
- Not listed
- Microphone
- Not listed
- Speaker
- Equipped
- Indicator light
- Not listed
Motion and performance
- Peak knee joint torque
- 270 Nm
- Maximum speed
- 0.8 m/s
- Maximum arm payload
- approx. 2 kg/arm
Battery and charging
- Battery capacity
- 14.4 Ah
- Runtime while standing
- approx. 4.5 hours
- Runtime while walking
- approx. 1.5 hours or more, depending on use
- Power supply
- Fast charging and replaceable battery
- Charging time
- approx. 2 hours
- Charger input
- 110–220 V; delivered EU mains version to be confirmed
- Charger output
- 54.6 V / 8 A
Computing, communication and software
- Base computing unit
- 16-core high-performance CPU
- High-performance computing module
- Not listed
- Communication
- Wi-Fi
- Handheld remote controller
- Supported
- OTA updates
- Supported
- Dance and motion sequence development
- Supported
- Group control software
- Supported
Actual performance depends on the environment, load, software and configuration. Maximum values may reflect different test conditions and may not be achievable simultaneously.
Package contents and options.
Package contents
- Robot and power supply according to the selected EU version
- Handheld controller and manufacturer documentation
- Itemised accessory list in the quotation
To be agreed in the quotation
- Motion library, group control and optional VR equipment.
- Content and movement sequences tailored to the event.
- Spare battery, deployment, training and support.
The confirmed quotation itemises the equipment and licences included in the delivery. Illustrations may show optional accessories.
Applications.
Software, accessories and deployment requirements are agreed for the selected application.
Stage performances
Dance and coordinated movement for cultural and commercial events, with fleet control through suitable software.
Brand and corporate events
Combine a planned performance, brand-specific appearance and a memorable robot demonstration.
Custom movement programmes
Build a programme from supported movements and selected skill packs; additional software and VR control are separate options.
Frequently asked questions.
What is A2 Lite designed for?
It is intended for entertainment, cultural events and commercial performances.
Are fleet control and the VR kit included?
Group-control software, upgraded skill packs and the VR teleoperation kit are paid extras.
How is it deployed?
Deployment uses the AIMMASTER client and the supplied controller.
What operating environment is suitable?
Use a flat, stable surface. Avoid moisture, temperature extremes, steep slopes, abrupt level changes and fragile surfaces or surfaces subject to vibration.
Product data and manufacturer images: AGIBOT. For custom solution packages, the reference describes the base platform.
