A full-size humanoid, 169 cm tall.
A2 robots can make a striking appearance at corporate demonstrations and events. Lite is primarily designed for movement demonstrations, while Ultra supports interactive applications with a broader sensor suite.
A series
AGIBOT A2 Ultra
1 / 6
The software and equipment required for these applications are specified in the quotation.
A full-size humanoid for customised dialogue, visitor reception and guided service applications.
Contact us for pricing.
Availability and configuration are agreed individually.
169 cmheight
69 kgmanufacturer-stated weight
40active degrees of freedom (DoF)
14.4 Ahbattery
A closer look at AGIBOT A2 Ultra.
Custom content and interaction.
Ultra’s cameras and LiDAR sensor provide detailed information about its surroundings. Developing the company knowledge base, robot character and visitor dialogue is a separate development task.
Plan the power supply.
The 14.4 Ah battery can be charged and replaced. Plan stationary interaction and walking separately when estimating operating time, as their energy requirements differ significantly.
The hardware, explained.
Front view
Interactive display
The head display provides visual feedback during interaction.
Speaker
Integrated audio output for speech and sound feedback.
Head RGB-D camera
Captures colour images and depth information.
Chest fisheye camera
A wide-angle camera in the upper chest.
LiDAR
Laser ranging supports environmental perception.
Microphone
Captures speech and surrounding sounds.
Waist RGB-D camera
Provides an additional colour-and-depth view in front of the robot.
Dexterous hands
Articulated fingers for gestures and manipulation.
Rear view
Two-axis neck
Head rotation and pitch joints orient the head.
Suspension point
An upper attachment point for supporting and handling the robot.
Rear battery pack
The replaceable battery is mounted on the back.
Seating support
The support bracket below the waist assists seated positioning.
Hip joints
Three hip axes position each leg.
Knee joint
Knee pitch enables leg flexion and extension.
Ankle and foot
Ankle pitch and roll position the foot against the ground.
Equipment overview
Movement and mechanics
- Active degrees of freedom
- 40
- Neck degrees of freedom
- 2
Sensing and control
- 3D LiDAR
- Equipped
- RGB-D camera
- Equipped
- RGB camera
- Equipped
Power and operation
- Battery capacity
- 14.4 Ah
- Power supply
- Fast charging and replaceable battery
- Charging time
- approx. 2 hours
See it in action.
COMPLETE DATA SHEET
Technical specifications.
Manufacturer specifications and measurement conditions, organised by topic.
Source: AGIBOT ↗
Dimensions and degrees of freedom (DoF)
- Dimensions (H × W × D)
- 169 × 75 × 30 cm
- Height
- 169 cm
- Weight
- approx. 69 kg
- Active degrees of freedom
- 40
- Neck degrees of freedom
- 2
- Degrees of freedom per arm
- 7
View full technical specificationsShow less
- Degrees of freedom per leg
- 6
- Degrees of freedom per hand
- 6, dexterous hand
Sensing and interaction
- 3D LiDAR
- Equipped
- RGB-D camera
- Equipped
- RGB camera
- Equipped
- Fisheye camera
- Equipped
- Interactive display
- Face display with facial expressions
- Microphone
- Microphone array
- Speaker
- Equipped
- Indicator light
- Equipped
Motion and performance
- Peak knee joint torque
- 270 Nm
- Maximum speed
- 1.2 m/s
- Maximum arm payload
- approx. 2 kg/arm
Battery and charging
- Battery capacity
- 14.4 Ah
- Runtime while standing
- approx. 3 hours
- Runtime while walking
- approx. 1.5 hours or more, depending on use
- Power supply
- Fast charging and replaceable battery
- Charging time
- approx. 2 hours
- Charger input
- 110–220 V; delivered EU mains version to be confirmed
- Charger output
- 54.6 V / 8 A
Computing, communication and software
- Base computing unit
- 16-core high-performance CPU
- High-performance computing module
- NVIDIA Jetson Orin 64G
- Communication
- Wi-Fi, 4G/5G; depending on version
- Handheld remote controller
- Supported
- OTA updates
- Supported
- Dance and motion sequence development
- Supported
- Group control software
- Supported
Actual performance depends on the environment, load, software and configuration. Maximum values may reflect different test conditions and may not be achievable simultaneously.
Package contents and options.
Package contents
- Robot unit
- Battery and battery charger
- Accessory charger and clip-on microphone
- Wireless emergency stop and handheld controller
- Shipping packaging according to the manufacturer’s list
To be agreed in the quotation
- Motion library, group control and optional VR equipment.
- Ultra: company knowledge base, interaction and navigation project.
- Spare battery, deployment, training and support.
The confirmed quotation itemises the equipment and licences included in the delivery. Illustrations may show optional accessories.
Applications.
Software, accessories and deployment requirements are agreed for the selected application.
Showroom presentations
Present company exhibits and products with prepared explanations and visitor interaction.

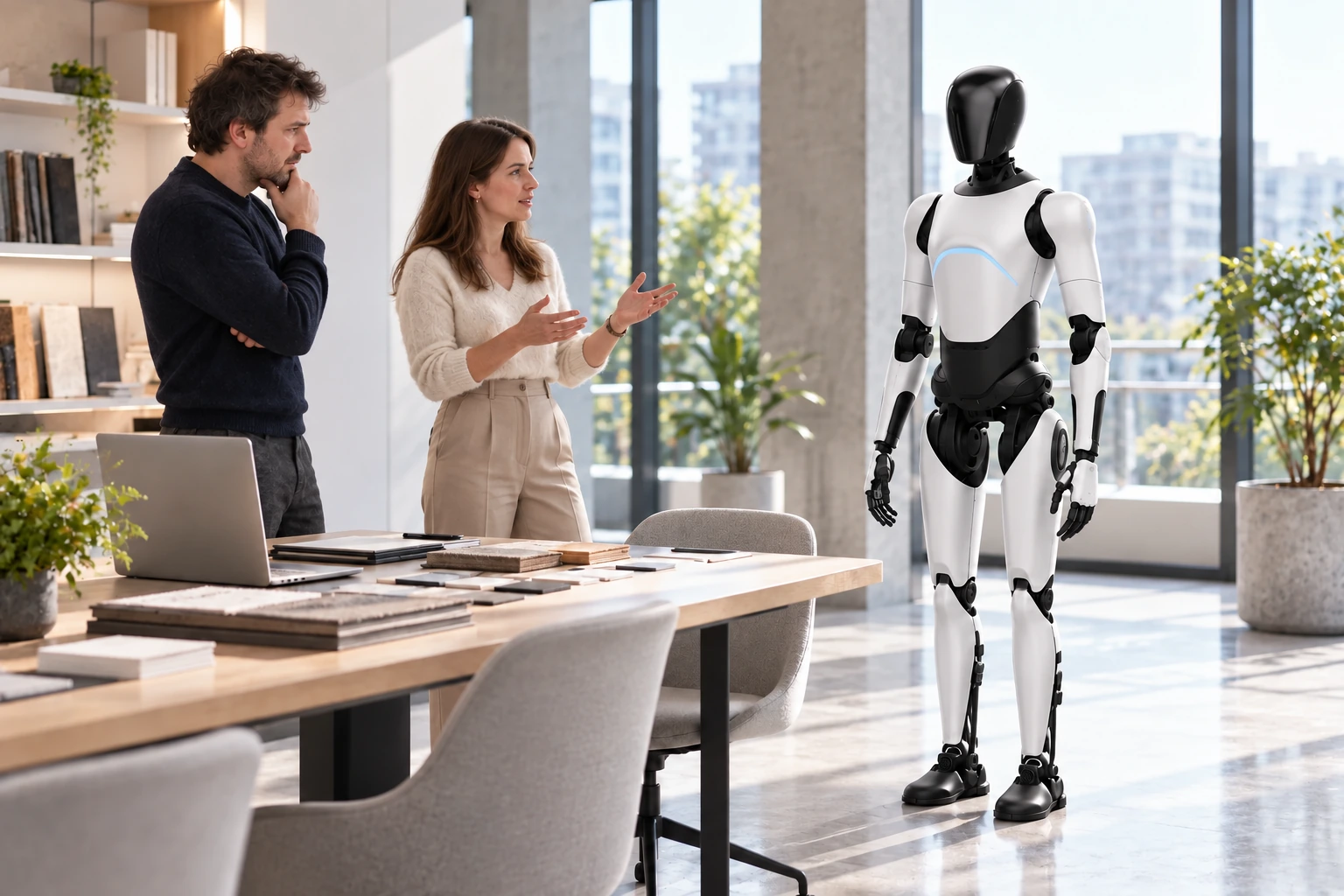

Reception and customer service
Welcome guests, answer prepared questions and provide information specific to the venue.
Cultural and commercial performances
Integrate choreography and planned robot demonstrations into the event programme.
Brand representation
Support launches, corporate events and promotions with a brand-specific appearance and prepared content.
Frequently asked questions.
What applications suit A2 Ultra?
Typical uses include showroom presentations, visitor interaction, performances and brand appearances.
Can I create custom movements?
The optional VR teleoperation kit can record movements; additional skills are offered through the skill shop.
How are multiple robots coordinated?
Group-control software schedules each robot’s path and skills on a shared timeline.
What environment does it require?
Choose level, stable ground and avoid humidity, extreme temperatures, steep slopes and large changes in floor height.
Product data and manufacturer images: AGIBOT. For custom solution packages, the reference describes the base platform.
